4G GPS Mini Pet Tracking Device Dog Training D-Track206

CPU	SC9820E
Positioning Accuracy	<10m
Dimension	70×39.5×17mm

D-Track206 is a 4G GPS pet dog tracker, which can be used for daily dog training and dog activity monitoring. D-Track206 GPS tracker can track and locate pet dogs in real time to prevent dogs from being lost, and can also monitor dogs’ sleep, heartbeat, and other health conditions.

Specifications

Specifications	Description
CPU	SC9820E
Network frequency band	LTE: B1 B2 B3 B4 B5 87 B8 B12 (17) B20 B28 B38 B39 B40 B41
WCDMA	B1 B2 B5 B8
GSM	850/900 /1800/1900
Tracking sensitivity	-159dBm
Capture sensitivity	-148dBm
Positioning accuracy	<10m (2DRMS)
Battery	1000 mAh
Weight	65g
Dimensions	70×39.5×17mm

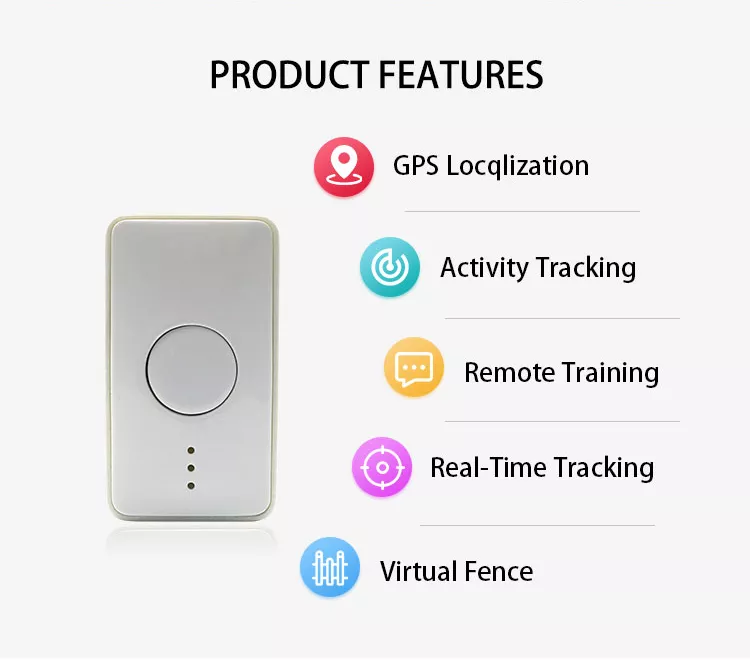

Application

◆Dog training function

◆4G GPS Pet Activity Monitor

◆Real-time Tracking When Sleep

◆Heartbeat to measure the dog’s condition or level of stress

◆Counting the steps of a dog and measure the distance it walks

◆Blind Zone Supplementary Report

◆Platform mode query positioning

◆Historical track

◆Geo-fencesos/ displacement / low battery alarm GPS + LBS positioning
