Description
| Racking System | Web +APP+SMS |
| GPS Frequency | 1575.42 MHz |
| Dimension(L×W×H) | 100*54*17 mm |
D-Track106 is a 4G full frequency or 4G LTE full frequency GPS tracker, designed for extensive vehicle tracking. Built-in GPS antenna, high sensitivity, fast positioning speed. It has 4 digital inputs (2 positive triggers, and 2 negative triggers), 2 digital outputs, 1 serial port, 2 analog inputs, etc. It can be applied to more flexible and complex project requirements.
| Functions | Description |
| Communication | Location data transmission GPRS network (TCP/UDP) |
| Command-SMS/GPRS network/serial port | |
| Location Tracking | Real-time location monitoring/query |
| Movement tracking (time interval) | |
| Stop line (time interval) | |
| Track by Distance | |
| Turn report | |
| GPS Mileage | GPS mileage report/GPS mileage coefficient is adjustable |
| Geofence | 25 rectangular geofences |
| Alert (event) | SOS alarm (SMS/GPRS network) |
| Main power cut off (SMS/GPRS network) | |
| Ignition report (GPRS network) | |
| Speeding alarm (GPRS network) | |
| Geo-fence alarm (GPRS network) | |
| Traction alarm (GPRS network) | |
| Emergency brake alarm (GPRS network) | |
| Acceleration alarm (GPRS network) | |
| Input/Output | 4 digital inputs: ignition detection, SOS button, 1 reserved positive trigger (air conditioning), 1 reserved negative trigger (door detection) 2 Digital output: fuel pump/engine circuit break or buzzer |
| Other | 1 serial port (RS232)Support cameras, temperature sensors, fuel level sensors, etc. 2 analog input Support load sensor, fuel level sensor (0-5V voltage output) |
| Blind Spot | When the data is in the buffer zone, it is in the blind zone of the GPRS network. 5K-40K historical blind zone data can be selected, and the default is 5K. |
| Initialization | Initialize tracker parameters via SMS/GPRS network/serial port |
| Upgrade | Upgrade firmware via OTA or serial port |
Specifications
| Parameter | Description | Performance Evaluation |
| Gift Box Dimension | 177*120*50mm | |
| Tracker Dimension | 100*54*17 mm | |
| Tracker Color | Black | |
| Weight | Tracker weight:0.08kg | |
| Power Supply | DC 9V — 55V/1A | |
| Working current | <200 mA（DC 12V） | |
| Processor | ARM7 | |
| Back-up battery | Built-in 300mAh, support 2 hours working when fully charged. | |
| Operating temperature | -40℃ –85℃ | |
| Operating humidity | 5% — 95% | |
| LED Light indicators | Green LED light indicates GPS status The Red LED light indicates the GPRS Network status Blue LED indicates power status | |
| Power Switch | 1 Backup battery switch on the Mainboard | |
| I/O Ports | 4 digital inputs | Ignition detecting– positive trigger |
| SOS detecting-negative trigger | ||
| Input1 (Reserved)- positive trigger | ||
| Input2 (Reserved)- negative trigger | ||
| 2 digital output | Fuel pump/engine circuit cut | |
| Others | 1 serial port(RS232) 2 Analog input | |
| GSM Module | Chipset | QUECTEL EC2X |
| Frequency | Depending on the operator and module model in each country EC25-A (North America) LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 GSM/EDGE: –EC25-E (EMEA, Korea, Thailand, India) LTE FDD: B1/B3/B5/B7/B8/B20 WCDMA: B1/B5/B8 GSM/EDGE: B3/B8 | |
| GPS Module | Chipset | Gotop GT-1612-MTR (MT3337) |
| Positioning accuracy | < 5m （95％） | |
| Cold start time | < 23s(in average） | |
| Warm start time | < 3 s (on average） | |
| Acquisition Sensitivity | -165dbm | |
| Acquisition channel | 66-channel | |
| GPS Frequency | 1575.42 MHz | |
Application

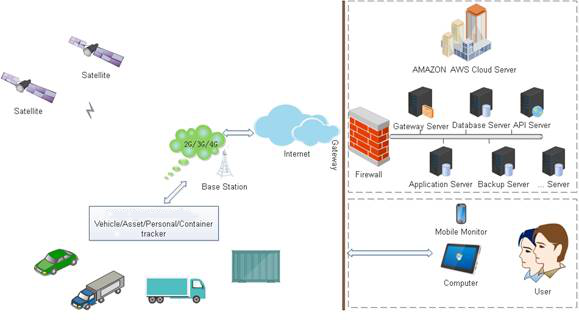

D-Track106 device is not like a GPS navigator, it cannot work independently, and it must work with a GPS tracking system.
